RJF Series High Torsional Coupling
  • name
  • name
  • name
  • name

RJF Series High Torsional Coupling

Standard Packaging: Plastic Bag+Carton+Wood Pallet
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
SHANGHAI
Brand Name
REYON
Certification
ISO9001/ITS16949
Model Number
RJF
Torque Capacity:
High
Misalignment Capacity:
High
Corrosion Resistance:
Excellent
Installation Method:
Clamp Or Set Screw
Compatibility:
Suitable For Various Shaft Sizes
Application:
High Torque Transmission
Material:
Stainless Steel; Alu; Rubber
Torsional Stiffness:
High
Packaging Details:
Plastic Bag+Carton+Wood Pallet
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

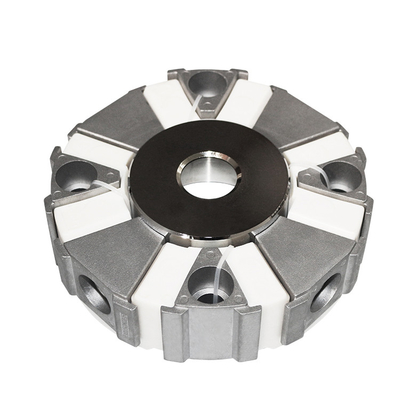

RJF Series High Torsional Coupling is used to connect internal combustion engines to hydraulic pumps. It consists of three parts: a hub, an elastic body and a movable aluminium block. Torsion Shaft Coupling has a simple structure, easy installation and no maintenance. The highly elastic element is made of synthetic rubber material, which can absorb vibration and impact. In the process of transmitting torque, it does not generate loads that are unfavourable to the machine.



Easy installation, maintenance-free, oil and corrosion resistance.


Collect vibration and compensate radial, angular and axial deviations.


The clockwise and counterclockwise rotation characteristics are exactly the same.


Good elasticity plays a good role in protecting the equipment.


Support the transmission of forward and reverse force.


Zero backlash Aluminum Alloy Maintenance Free Corrosion Resistant Torsion Shaft Coupling for Mechanical Transmission.



Size Dimension (mm)

  OD (min) LTB(+2/-1) ET BC/distributing angular L1 BE(+3/-2) HD R ER C/E F/dis(ributing angular S M1 M2
RJK25K(L=52) 175 45 46 140/3@120° 52 7 85 20 40 5/17.5 104/3@120° 27 3-M14X40 2-M16X20
RJK30K(L=60) 205 56 56 165/3@120° 60 7 100 25 46 5/5.0 125/3@120° 33 3-M16X50 2-M16X20
RJK30K(L=78) 205 71 56 165/3@120° 78 7 100 25 46 5/5.0 125/3@120° 33 3-M16X50 2-M16X20
RJK50K(L=60) 205 56 56 165/4@900 60 7 100 25 46 5/5.0 125/4@90° 33 4-M16X50 2-M16X20
RJK50K(L=78) 205 71 56 165/4@90° 78 7 100 25 46 5/5.0 125/4@90° 33 4-M16X50 2-M16X20
RJK110K(L=60) 225 56 59 180/4@90° 60 7 100 25 46 5/10.0 145/4@90° 33 4-M18X60 2-M16X20
RJK110K(L=78) 225 71 59 180/4@90° 78 7 100 25 46 5/10.0 145/4@90° 33 4-M18X60 2-M16X20
RJK160K(L=73) 270 71 59 215/4@90° 73 8.5 125 25 48 8/16.0 165/4@90° 35 4-M20X50 2-M16X20
RJK240K(L=76) 330 73 65 260/4@90° 76 8.5 160 28 55 8/32.0 200/4@90e 38 4-M20X65 2-M16X20
*RJK250K(L=108) 340 100 85 280/4@90° 108 8.5 160 55 77 / 195/4@ 90° 35 / /
*RJK400K(L=135) 370 125 105 300/4@90° 135 8.5 170 67 95 / 200/4@90° 35 / /
RJK450K(l=90) 410 81 90 350/6@60° 90 10 250 23 45 8/16.0 296/4@90° 35 2-M20X25 2-M20X25
RJK550K(l=90) 450 81 90 360/6@60° 90 10 250 26 52 8/16.0 300/6@60° 39 2-M20X30 2-M20X30
