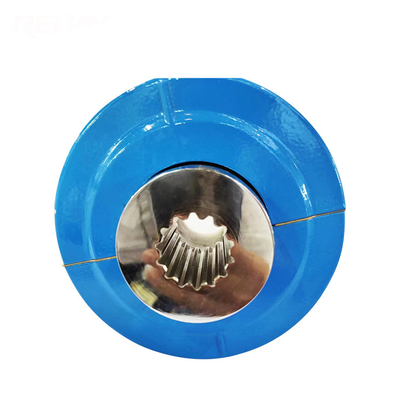

G Series Grid Coupling

The main structure of the grid coupling is composed of two half couplings, two half covers, two sealing rings and serpentine spring sheets. It transmits torque by embedding the serpentine spring into the tooth grooves of the two half couplings. It is mainly used in crushers, crank reciprocating motion, reducers, metallurgy, mining, lifting machinery, etc.

Good shock absorption.long service life.

Good withstand large variation and loading, safety starting.

High efficient power transmission and reliable running.

Low noise.Good lubrication.

Simple in structure, convenient installation.

The whole unit has parts and small columns and is lightweight.

Large installation deviation is allowed.

It is suitable for medium and high-power transmission shafts that connect two coaxial lines. It can make up for two shafts relative skewing and shock absorption, cushion performance.working temperature:-30℃~+150℃, Transfer nominal torque 45~800000Nm.

It is mainly applied to stone breakers, crank reciprocates, speed reducers, Metallurgy, Mining, and Crane machines.

Shaft transmission of various other machinery and equipment. The places where a Motor connected with a reduction gearbox or shaft connected with a shaft can be applied.

Technical Specifications
