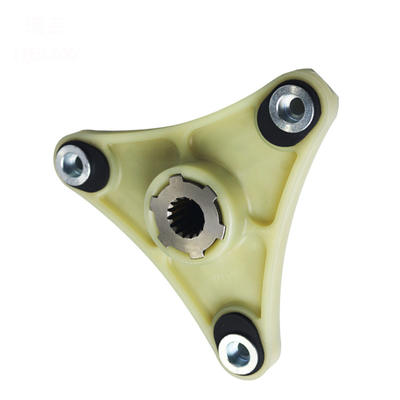

FL LTA Flange Flywheel Coupling

Standard Packaging:	Plastic Bag+Carton+Wood Pallet
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Certification

ISO9001/ITS16949

Model Number

FL LTA

Mounting Type:

Flexible

Material:

Steel; Nylon

Connection Type:

Flange

Torque Capacity:

Up To 5000 Nm

Country Of Origin:

Varies Depending On Manufacturer

Bore Size:

Up To 100 Mm

Operating Temperature:

Up To 120°C

Max Speed:

Up To 5000 RPM

Packaging Details:

Plastic Bag+Carton+Wood Pallet

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

FL LTA Flange Flywheel Coupling is used for flexible transmission and has strong correction ability in axial, radial and angular directions. Since the structure of the hyperboloid tooth can effectively avoid the phenomenon of local stress concentration caused by angular and radial deviation, REYON FL LTA Flange Flywheel Coupling hardly produces wear.

FL LTA Flange Flywheel Coupling is a double-section structure; the stress caused by the angular and radial installation deviation can be ignored, and the angular velocity will not fluctuate periodically.
Suitable for horizontal and vertical installation without any special assembly tools.

Couplings are used to connect the internal combustion engine flywheel and hydraulic pump.

It is suitable for use in hydraulic transmission systems such as construction machinery, collection, and PJ machinery.

High torsional rigidity and no resonance in operation.

Nylon flange and steel bushing connection, maintenance-free.

Nylon flanges have high mechanical strength and thermal stability (+130°C).

The installation length is extremely short.

Axial insert assembly, easy to install.

Special connection lengths are available.

Technical Specification

Type	Rated Torque(Nm)	Max Torque(Nm)	A(mm)	B(mm)	C(mm)	Radial deviation correction(mm)
FL LTA 135	120	300	135	100	3x10	0.2
FL LTA 3-165	180	450	220	165	3x12	0.2
FL LTA 3-185	180	450	220	185	3x10	0.2
FL LTAW"SD	356	890	314.3	295.3	8x10	0.2
FL LTA 10" HD	693	1732	314.3	295.3	8x10	0.2
