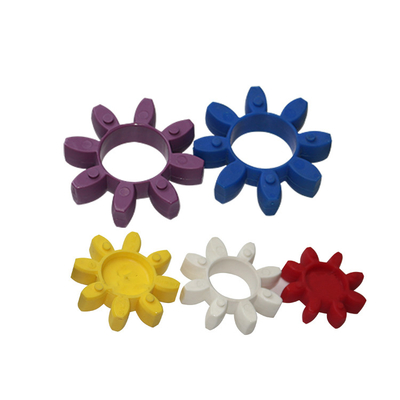

RL Series Spider Element

Standard Packaging:	Plastic Bag+Carton+Wood Pallet
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Certification

ISO9001/ITS16949

Model Number

92SHA; 80SHA; 95/98SHA; 64SHD

Temperature:

-40℃+100℃; Up To 120℃

Application:

Industrial Machinery

Type:

Spider Coupling

Speed Rating:

Depends On Size And Model

Max Torque:

Up To 20000 Nm

Color:

White; Blue; Red; Green

Material:

Polyurethane; TPS

Packaging Details:

Plastic Bag+Carton+Wood Pallet

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

Elastomers for Spider Coupling with High Load Capacity and Easy Maintenance

The Spider Coupling installs an integral plum-shaped elastomer between the claws of two half-couplings of the same shape to realise the connection between the two half-couplings. Therefore, the elastomer of theSpider Coupling plays a crucial role in its performance.

The elastomer of the Spider Coupling is approximately plum blossom shape, which can compensate for the displacement deviation of part of the two shafts. It has the function of vibration reduction at the same time.

Technical Specifications

Spider	Size	Torque [Nm]			Max. rotation n [l/min]		Torsional angle		Torsional stress Cdyn [Nm/rad]				Relatively damping
Spider	Size	Rated, tkn	max.	Alternat. tkw	v=30 m/s	v=40 m/s	Tkn	Tkmax.	1.00Tkn	0.75Tkn	0.5Tkn	0.25Tkn	Relatively damping
80° Shore Colour: Blue Scale A	14/16+15	4	8	1	19000		6.4°	10°					0.85
	19/24	4.9	9.7	1.3	14000	19000	3.2°	5°	0.25×103	0.21×103	0.17×103	0.11×103
	24/32	17	34	4.4	10600	14000			0.90×103	0.75×103	0.60×103	0.40×103
	28/38	46	92	12	8500	11800			230×103	1.93×103	1.52×103	1.03×103
	38/45	93	185	24	7100	9500			4.10×103	3.45×103	2.75×103	1.85×103
	42/55	130	260	34	6000	8000			5.90×103	5.05×103	4.00×103	2.70×103
	48/60	150	300	39	5600	7100			8.00×103	6.81×103	5.30×103	3.60×103
	55/70	180	360	47	4750	6300			9.95×103	8.45×103	6.71×103	4.50×103
	65/75	205	410	53	4250	5600			13.05×103	11.08×103	8.79×103	5.89×103
	75/90	475	950	124	3550	4750			22.00×103	18.44×103	14.65×103	9.85×103
	90/100	1175	2350	306	2800	3750			45.00×103	38.20×103	30.05×103	20.00×103
	100/110	1610	3220	419	2500	3350			75.69×103	64.00×103	50.20×103	34.00×103
	110/125	1950	3900	507	2240	3000			100.00×103	84.00×103	67.00×103	45.00×103
	125/145	2440	4880	634	2000	2650			140.00×103	118.00×103	94.00×103	63.06×103
92° Shore Colour: White Scale A	14/16,15	7.5	15	2.0	19000		6.4°	10°	0.38×103	0.31×103	0.24×103	0.14×103	0.75
	19/24	10	20	2.6	14000	19000	3.2°	5°	1.28×103	1.05×103	0.80×103	0.47×103
	24/32	35	70	9.1	10600	14000			4.86×103	3.98×103	3.01×103	1.79×103
	28/38	95	190	25	8500	11800			10.90×103	8.94×103	6.76×103	4.01×103
	38/45	190	380	49	7100	9500			21.05×103	17.26×103	13.05×103	7.74×103
	42/55	265	530	69	6000	8000			23.74×103	19.47×103	14.72×103	8.73×103
	48/60	310	620	81	5600	7100			36.70×103	30.09×103	22.75×103	13.49×103
	55/70	410	820	107	4750	6300			50.72×103	41.59×103	31.45×103	18.64×103
	65/75	625	1250	163	4250	5600			97.13×103	79.65×103	60.22×103	35.70×103
	75/90	1280	2560	333	3550	4750			113.32×103	92.92×103	70.26×103	41.65×103
	90/100	2400	4800	624	2800	3750			190.09×103	155.87×103	117.86×103	69.86×103
	100/110	3300	6600	858	2500	3350			253.08×103	207.53×103	156.91×103	93.01×103
	110/125	4800	9600	1248	2240	3000			311.61×103	255.52×103	193.20×103	114.52×103
	125/145	6650	13300	1729	2000	2650			474.86×103	389.39×103	294.41×103	174.51×103
98° Shore Colour: Red Scale A	14/16+15	12.5	25	3.3	19000		6.4°	10°	0.56×103	0.46×103	035×103	0.21×103	0.7
	19/24	17	34	4.4	14000	19000	3.2°	5°	2.92×103	2.39×103	131×103	1.07×103
	24/32	60	120	16	10600	14000			9.93×103	8.14×103	6.16×103	3.65×103
	28/38	160	320	42	8500	11800			26.77×103	21.95×103	16.60×103	9.84×103
	38/45	325	650	85	7100	9500			4S.57×103	39.83×103	30.11×103	17.85×103
	42/55	450	900	117	6000	8000			54.50×103	44.69×103	33.79×103	20.03×103
	48/60	525	1050	137	5600	7100			65.29×103	53.54×103	40.48×103	24.00×103
	55/70	685	1370	178	4750	6300			94.97×103	77.88×103	58.88×103	34.90×103
95° Shore Colour: Red Scale A	65/75	940	1880	244	4250	5600	3.2°	5°	129.51×103	106.20×103	80.30×103	47.60×103	0.7
	75/90	1920	3840	499	3550	4750			197.50×103	161.95×103	122.45×103	72.58×103
	90/100	3600	7200	936	2800	3750			312.20×103	256.00×103	193.56×103	114.73×103
	100/110	4950	9900	1287	2500	3350			383.26×103	314.27×103	237.62×103	140.85×103
	100/125	7200	14400	1872	2240	3000			690.06×103	565.85×103	427.84×103	253.60×103
	125/145	10000	20000	2600	2000	2650			1343.64×103	1101.79×103	833.06×103	493.79×103
64° Shore Colour: Green Scale D	24/32	75	150	19.5	10600	14000	2.5°	3.6°	15.11×103	12.39×103	9.37×103	5.55×103	0.6
	28/38	200	400	52	8500	11800			27.52×103	22.57×103	17.06×103	10.12×103
	38/45	405	810	105	7100	9500			70.15×103	57.52×103	43.49×103	25.78×103
	42/55	560	1120	146	6000	8000			79.86×103	65.49×103	49.52×103	29.35×103
	48/60	655	1310	170	5600	7100			95.51×103	78.32×103	59.22×103	35.10×103
	55/70	825	1650	215	4750	6300			107.52×103	88.50×103	66.91×103	39.66×103
	65/75	1175	2350	306	4250	5600			151.09×103	123.90×103	93.68×103	55.53×103
	75/90	2400	4800	624	3550	4750			248.22 X103	203.54×103	153.90×103	91.22×103
	90/100	4500	9000	1170	2800	3750			674.52×103	553.11×103	418.20×103	247.89×103
