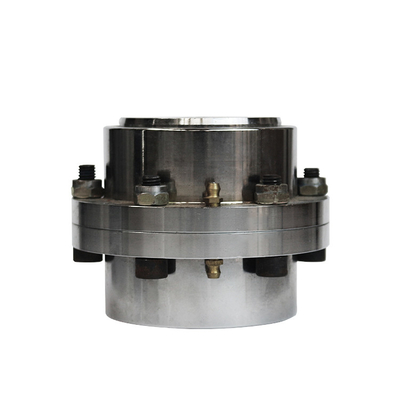

Flexible Gear Coupling

The Flexible Gear Coupling has the ability to compensate the deviation of the axis such as radial, axial and angular within 30°, and has the advantages of compact structure, small rotating radius, large bearing capacity, high transmission efficiency and low noise. It is especially suitable for low speed and heavy loading conditions, such as metallurgy, mining, lifting, transportation and other industries.

Compared with other high torque transmission, the gear coupling has the properties of compactstructure, light weight, long service life, and the loss of the transmitted torque could be reduced furthest, and it almost has no noise and vibration during its high speed rotation.

The curved tooth could adjust and eliminate the axis deviation so as to ensure normal transmission. At the same time, the internal lubrication system could strengthen the teeth abrasion resistance performance.

Both two sides of the sleeve are equipped with concave-convex, which is for the purpose of easy installation and disassembly.

The material is St 52.3, so the durability under heavy loading conditions is increased. Special steel is also available in accordance with the client's requests.

Technical Specifications
