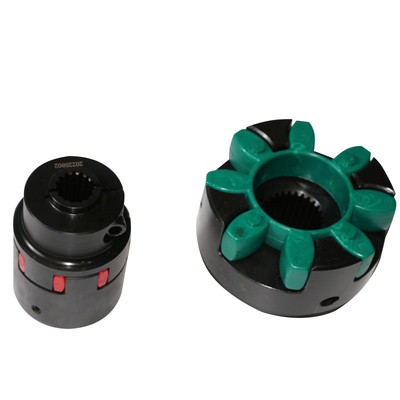

RL Series Torsionally Flexible Spider Couplings

Standard Packaging:	Plastic Bag+ Carton+ Standard Export Packing
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Model Number

Temperature Range:

-40°C To 120°C

Angular Misalignment:

±1°

Max Torque:

20000 Nm

Material:

Steel; Alu; GG

Outside Diameter(D):

26mm ~ 420mm

Packaging Details:

Plastic Bag+ Carton+ Standard Export Packing

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

The Torsionally Flexible Spider Coupling, also called Jaw Coupling, is widely used and comprises two metal jaw discs and an elastic body. The two metal spider discs are generally 45-gauge steel, but aluminium alloys are also helpful when sensitive loads are required.

The Torsionally Flexible Spider Coupling is processed by machining methods such as turning, milling, and broaching and then undergoes an overall heat treatment. To ensure sufficient mechanical strength, there is also a jaw disc on the market that is a casting, which can be produced in large quantities and eliminates processing losses. So, in terms of price, it is much lower than that of machining. However, the performance of castings is not good, and it is not recommended to be used in some critical working conditions. In addition, the jaws of the castings are prone to fall off under high-speed or high-load conditions.

The Torsionally Flexible Spider Coupling has a simple structure, no lubrication, easy maintenance, easy inspection, maintenance-free, and can run continuously for a long time. High-strength polyurethane elastic elements are wear-resistant and oil-resistant, have large bearing capacity, long service life, and are safe and reliable. Stable and dedicated work, with good vibration damping, buffering and electrical insulation properties. Has extensive axial, radial and angular compensation capabilities. Simple structure, small radial size, lightweight, tiny moment of inertia, suitable for medium and high-speed occasions.

Structural features of the Torsionally Flexible Spider Coupling:

1. Intermediate elastomer connection

2. Can absorb vibration and compensate radial, angular and axial deviation

3. Oil resistance and electrical insulation

4. Clockwise and counterclockwise rotation characteristics are the same

5. Fixing with positioning screws

The Torsionally Flexible Spider Couplings are widely used in CNC machine tools, CNC lathes, machining centres, engraving machines, CNC milling machines, computer gongs, metallurgical machinery, mining machinery, petroleum machinery, chemical machinery, lifting machinery, transportation machinery, light industry machinery, textile machinery, pumps, fans, etc.

Technical Specifications

	Shaft D×I [mm]		n=750 [1/min] Power P		Size	Tk max.[Nm]	n=1000 [1/min] Power P		Size	Tk max.[Nm]	n=1500 [1/min] Power P		Size	Tk max.[Nm]	n=3000 [1/min] Power P		Size	Tk max.[Nm]
Motor Size	=1500 [1/min]	=3000 [1/min]	kW	TAN [Nm]			kW	TAN [Nm]			kW	TAN [Nm]			kW	TAN [Nm]
56	9*20		-	-	14/16	15	-	-	14/16	20	0.06	0.4	14/16	20	0.09	0.3	14/16	20
					15				15		0.09	0.6	15		0.12	0.4	15
63	11*23		-	-			-	-			0.12	0.9			0.18	0.6
							-				0.18	1.2			0.25	0.9
71	14*30		-	-			-	-			0.25	1.8			0.37	1.3
											0.37	2.5			0.55	1.9
80	19*40		-	-	19/24	20	0.37	3.7	19/24	20	0.55	3.7	19/24	20	0.75	2.5	19/24	20
							0.55	5.5			0.75	5.0			1.1	3.7
90S	24*50		-	-			0.75	7.9			1.1	7.5			1.5	4.9
90L			-	-			1.1	11			1.5	10			2.2	7.4
100L	28*60		0.75	11	24/32	70	1.5	15	24/32	70	2.2	15	24/32	70	3	9.8	24/32	70
			1.1	16							3	20
112M			1.5	21			2.2	22			4	27			4	13
132S	38*80		2.2	29	28/38	190	3	30	28/38	190	5.5	36	28/38	190	5.5	18	28/38	190
															7.5	25
132M			3	40			4	39			7.5	49
							5.5	55
160M	42*110		4	54	38/45	380	7.5	74	38/45	380	11	72	38/45	380	11	35	38/45	380
			5.5	74											15	49
160L			7.5	100			11	108			15	98			18.5	60
180M	48*110				42/55	530			42/55	530	18.5	121	42/55	530	22	72	42/55	530
180L			11	147			15	147			22	144
200L	55*110		15	196			18.5	185			30	195			30	97
							22	215							37	117
225S	60*140	55*110	18.5	245	48/60	620			48/60	620	37	245	48/60	620
225M			22	294			30	292			45	294			45	146
250M	65*140	60*140	30	390	65/75	1250	37	361	55/70	820	55	357	55/70	820	55	176	48/60	620
280S	75*140	65*140	37	490			45	440	65/75	1250	75	487	65/75	1250	75	245	55/70	820
280M			45	565			55	536			90	584			90	294
315S	80*170		55	715	75/90	2560	75	730	75/90	2560	110	714	75/90	2560	110	350
315M			75	970	90/100	4800	90	876			132	857			132	420	65/75	1250
315L			90	1170			110	1070	90/100	4800	160	1030	90/100	4800	160	613
			110	1420			132	1280			200	1290			200	641
355L	95*170	75*140	132	1710			160	1550			250	1610			250	801	75/90	2560
			160	2070	100/110	6600	200	1930			315	2020			315	1010
			200	2580			250	2420
									100/110	6600							90/100	4800
400L	100*210	80*170	250	3230	110/125	9600	315	3040				2280	100/110	6600	355	1140
												2560			400	1280
