- E1						- 1
Type SF		liquid level switch				Tighten bolt Installed on the tank wall centre distance
no liquid level switch						1=76
The default normally closed 0 type						2=127
No Liquid Level Switch						3=254
normally C type						L=Speciallength can be customized
double switch W-type
- Th
- V				thermometer function
Seal material				No temperature function
tacitly approve NBR rubber				Default tube scale thermometer
V FPM				Tube scale thermometer range: -10.C..+80°C
Sf1 tube scale display range: +20°C+80°C
- CV				External bimetal tal thermometer length 200mm
Fastening Bolt				External bimetal thermometer length 300mm
Default M12				Temperature switch temperature +60°C
With check check Valve				Temperature switch temperature+70°C
FV anti-leak type				Temperature switch temperature+80°C
The temperature switch normally closes contact when the oil temperature
Exceeds the Set Switch Temperature
Contact Open, Temperature Alarm
Type	size(mm)
	A	B	C	D	E	27	G
SF1	76	32	108	34	45	27	M12
SF2	127	76	159	34	45	27	M12
SF3	254	203	286	34	45	27	M12

MDL/PTFSDL/PTFLDL Series Damping Rod

Contact Now

RD Series Cleaning Cover

Contact Now

SF Series Level Guage

Contact Now

PRODUCTS DETAILS

Products

Couplings and joints

Spider couplings

Gear couplings

Disc couplings

Rigid Flange Flywheel couplings

Grid couplings

High torsional couplings

Hydraulic components & accessories

Damping element

Hydraulic oil tank

Cleaning cover

Level gauge

Tank heater

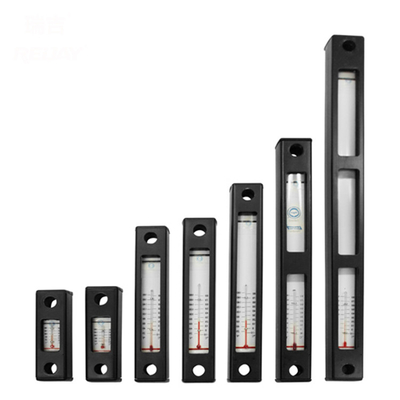

SF Series Level Guage

Standard Packaging:	Plastic Bag+Carton+Wood Pallet
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Certification

ISO9001/ITS16949

Model Number

Color:

Black

Material:

Stainless Steel; Alu; Rubber

Application:

Hydraulic System

Warranty:

2 Years

Packaging Details:

Plastic Bag+Carton+Wood Pallet

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

Advantages of Reijay level gauge:

1. The maximum and minimum liquid levels could be known by visual inspection and

electronic control.

2. Alarm and control point are free to choose.

3. The maximum length for the special indicator could be 4000 mm

4. External mounting and embedded level gauges are available

5. Multi-point electrical control and temperature display or temperature control

6. Good sealing performance and internal leakage are prevented

7. Oil resistance on level gauges’ surface, anti-ageing and anti-discolouring, customized for special length

8. Various types of breather plugs or oil filler plugs are optional

- E1						- 1
Type SF		liquid level switch				Tighten bolt Installed on the tank wall centre distance
no liquid level switch						1=76
The default normally closed 0 type						2=127
No Liquid Level Switch						3=254
normally C type						L=Speciallength can be customized
double switch W-type
- Th
- V				thermometer function
Seal material				No temperature function
tacitly approve NBR rubber				Default tube scale thermometer
V FPM				Tube scale thermometer range: -10.C..+80°C
Sf1 tube scale display range: +20°C+80°C
- CV				External bimetal tal thermometer length 200mm
Fastening Bolt				External bimetal thermometer length 300mm
Default M12				Temperature switch temperature +60°C
With check check Valve				Temperature switch temperature+70°C
FV anti-leak type				Temperature switch temperature+80°C
The temperature switch normally closes contact when the oil temperature
Exceeds the Set Switch Temperature
Contact Open, Temperature Alarm
Type	size(mm)
	A	B	C	D	E	27	G
SF1	76	32	108	34	45	27	M12
SF2	127	76	159	34	45	27	M12
SF3	254	203	286	34	45	27	M12
