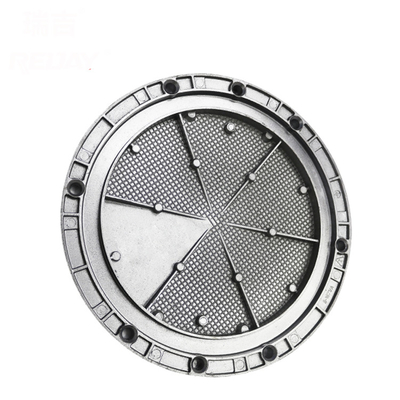

RD Series Cleaning Cover

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Certification

ISO9001/ITS16949

Model Number

Product Description

The cleaning covers are made through die-casting thealuminum alloy, so it is sturdy, durable and light weight.The cleaning covers are manufactured in line with VDMA24339, and we can also provide special specificationsand customize logos required by the clients.

For the sealing,NBR,FPM and EPDM material are available,and the maximum pressure resistant value is 0.5 bar.

Technical Specifications of Hydraulic Tank Cleanout Covers:

Type of cleaning cover	Dimensions [mm]				ProMe gasket 16 x 18
Type of cleaning cover	D	DI	D2	D3	Perbunan	Viton
RD250-4	250	224	167	159	D168 NBR	D168 FPM
RD350-V 324-4*	350	324	267	261	D268 NBR	D268 FPM
RD350-V 324-6*	350	324	267	261	D268 NBR	D268 FPM
RD475-V 449-6*	475	449	392	386	D393 NBR	D393 FPM
Type of cleaning cover	Dimensions [mm]				ProMe gasket 16 x 18
Type of cleaning cover	D	DI	D2	D3	Perbunan	Viton
RD560	560	530	470	460	D471 NBR
RD620	620	580	520	512	D520 NBR
RD720	720	680	620	608	D620 NBR
Type of cleaning cover	Dimensions [mm]			Gasket	Screw	O-Ring
Type of cleaning cover	D	DI	D2		Screw	Perbunan	Vition
RD235	235	200	202	22x16x1.5	M16x 55	214x 5 NBR	214x 5 FPM
RD345	345	306	308	28.7 x21.5x2.5	M20x 65	319 x 8.4 NBR	315x 10 FPM
