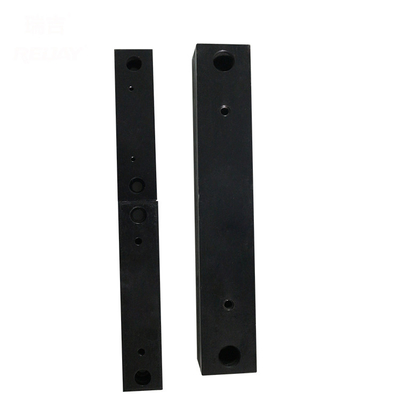

MDL/PTFSDL/PTFLDL Series Damping Rod

Standard Packaging:	Plastic Bag+Carton+Wood Pallet
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

SHANGHAI

Brand Name

REYON

Certification

ISO9001/ITS16949

Model Number

MDL/PTFSDL/PTFLDL

Packing:

Stand Packing

Material:

Rubber

Density:

1.2-1.5 G/cm3

Chemical Resistance:

Excellent

Uv Resistance:

Elongation At Break:

300-500%

Tensile Strength:

10-20 MPa

Standard Or Nnonstandard:

Standard

Selection Method:

3D Modeling Software

Installation Method:

Horizontal Installation

Packaging Details:

Plastic Bag+Carton+Wood Pallet

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

The damping rods are applicable for damping for IMB35 motor foot, NEMA motor foot. and VDMA24561 standard bracket foot. It is mounted horizontally, with the oil resistant rubber, the noise and vibration could be reduced and absorbed.

Shock-absorbing strips can reduce noise and vibration.

DSM-type shock-absorbing strips matching the motor IMB35 can be provided, and those matching the PTFL brackets can be provided. The damping strip was DSFL type, and the damping strip DSFS type matched the PTFS bracket.

Also suitable for Nema motors.

The material of the shock-absorbing strip is natural rubber (NR).

All shock-absorbing strips are designed according to the required weight and load.

Have a large amount of inventory.

Type of damping rod	For type	L	L1	L2	H	H1	H2	B	B1	B2	d	D	M
For electric motors
MDL71	71	196	90	156	40	8	12	50	21	25	14	20	M6
MDL80	80	176	100	146	40	8	12	50	22	25	14	20	M8
MDL90S	90S	196	100	156	40	8	12	50	22	25	14	20	M8
MDL90L	90L	240	125	205	40	8	12	50	24	25	14	20	M8
MDL100L	100L	240	140	205	40	8	12	50	24	25	14	20	M10
MDL112M	112M	240	140	205	40	8	12	50	20	25	14	20	M10
MDL132S	132S	285	140	245	45	8	12	50	20	25	14	20	M10
MDL132M	132M	285	178	245	45	8	12	50	20	25	14	20	M10
MDL160M	160M	340	210	300	60	15	15	70	28	35	18	26	M12
MDL160L	160L	416	254	370	60	15	15	70	28	35	18	26	M12
MDL180M	180M	416	241	370	60	15	15	70	35	35	18	26	M12
MDL180L	180L	446	279	400	60	15	15	70	35	35	18	26	M12
MDL200L	200L	496	305	430	60	15	15	70	35	35	22	32	M16
MDL225S	225S	496	286	430	60	15	15	70	35	35	22	32	M16
MDL225M	225M	496	311	445	60	15	15	70	35	35	22	32	M16
MDL250M	250M	496	349	445	60	15	15	100	50	50	25	40	M20
MDL280S	280S	580	368	530	60	15	15	100	50	50	25	40	M20
MDL280M	280M	580	419	530	60	15	15	100	50	50	25	40	M20
MDL315S	315S	660	406	610	70	15	15	150	60	75	25	40	M24
MDL315M	315M	660	457	610	70	15	15	150	60	75	25	40	M24
MDL315L	315L	720	508	670	70	15	15	150	60	75	25	40	M24
MDL355L	355L	960	630	860	80	20	20	130	70	65	25	40	M24
MDL355S	355S	960	500	860	80	20	20	130	70	65	25	40	M24
For foot brackets
PTF5DL250	PTFS 250	290	185	260	40	8	12	50	20	25	14	20	M12
PTFSDL300	PTFS 300	350	225	300	40	8	12	50	20	25	14	20	M12
PTFSDL350	PTFS 350	375	265	340	60	8	12	70	30	35	18	26	M16
PTFSDL400	PTFS 400	420	300	385	60	15	15	70	30	35	18	26	M16
PTFSDL450	PTFS 450	455	335	420	60	15	15	70	30	35	18	26	M16
PTFSDL550	PTFS 550	535	415	500	60	15	15	70	30	35	18	26	M16
PTFSDL660	PTFS 660	660	495	610	60	15	15	70	30	35	22	32	M20
PTFLDL160	PTFL 160	176	50	130	40	8	12	50	10	25	14	20	M8
PTFLDL200	PTFL 200	176	60	130	40	8	12	50	15	25	14	20	M10
PTFLDL250	PTFL 250	230	60	140	40	8	12	50	15	25	14	20	M12
PTFLDL300	PTFL 300	270	80	170	40	8	12	50	15	25	14	20	M12
