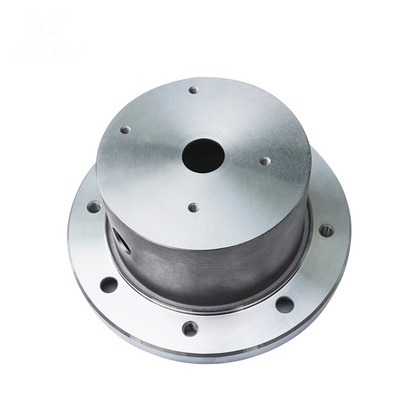

RC Series Bellhousing
  • name
  • name
  • name

RC Series Bellhousing

Detail Information
Product Description
Detail Information
Place of Origin
SHANGHAI
Brand Name
REYON
Certification
ISO9001/ITS16949
Model Number
RC
Product Description

RC series bellhousing is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps. Motor shaft and pump shaft adopt self-centering design, and the size is manufactured according to VDMA24561 standard. It can be used for overloading.



The hydraulic pump bellhousing is used to connect the IEC standard and NEMA standard motor and hydraulic oil pump. The motor shaft and the pump shaft are self-aligning designs, and the size is manufactured according to the VDMA24561 standard, which can be used for heavy loads. The bottom is not solid but has reinforcing ribs, and there are built-in shock absorption and external flange shock absorption options; there are observation holes on the side, which is convenient for observing the operation of the machine.



Selected materials are aluminium alloy, cast iron, and nylon, using high and medium-low-pressure casting.


Spinning and injection moulding technology is light in weight.


Dense internal organization, high strength and good heat dissipation.


Tensile strength: 228Mpa, yield strength: 154Mpa, elongation: 1.4%


Strong stability, beautiful appearance and long service life.


Simple structure, easy to operate and suitable for different working environments.


Low noise operation is realized in all pressure ranges.


German manufacturing technology guarantees product quality and comprehensive technical support.





Technical Specifications



Type of bell housing E-Motor Frame size Power [kW] Shaftend Dxl [mm] Footbracket DI D2 D3 D4 d1 d2 d3 L L1 F G G1 H2
RC 160/80/... 71 0.25 14x30 PTFL160 160 130 110 110 21 107 　 30 13 4 9 S8 3.5
RC 160/90/... 　 0.37 　 　 　 　 　 　 　 　 　 90 　 　 　 　 　
RC 200/100/... 80 0.55-0.75 19x40 PTFL200 200 165 130 145 36 129 　 100 16 5 11 ^110 12.5
RC 200/110/... 90S+L 1.1-1.5 24x50 　 　 　 　 　 　 　 　 110 　 　 　 　 　
RC 200/118/... 　 　 　 　 　 　 　 　 　 　 　 118 　 　 　 　 　
RC 200/124/... 　 　 　 　 　 　 　 　 　 128 　 124 　 　 　 　 　
RC 200/140/... 　 　 　 　 　 　 　 　 　 　 　 140 　 　 　 　 　
RC 250/120/... 100L 2.2-3 28x60 PTFL250 250 215 180 190 45 178 172 120 19 5 14 M12 14.5
RC 250/124/... 112M 4 　 PTFS250 　 　 　 　 　 　 　 124 　 　 　 　 　
RC 250/128/... 　 　 　 　 　 　 　 　 　 　 　 128 　 　 　 　 　
RC 250/135/... 　 　 　 　 　 　 　 　 　 　 　 135 　 　 　 　 　
RC 250/148/... 　 　 　 　 　 　 　 　 　 172 　 14S 　 　 　 　 　
RC 250/175/... 　 　 　 　 　 　 　 　 　 176 　 175 　 　 　 　 　
RC 300/144/... 132S 5.5 38x80 PTFL300 300 265 230 234 50 222 217 144 20 5 14 M12 18
RC 300/150/... 132M 7.5 　 PTFS300 　 　 　 　 　 221 　 150 　 　 　 　 　
RC 300/155/... 　 　 　 　 　 　 　 　 　 　 　 155 　 　 　 　 　
RC 300/168/... 　 　 　 　 　 　 　 　 　 220 　 168 　 　 　 　 　
RC 300/196/... 　 　 　 　 　 　 　 　 　 217 　 196 　 　 　 　 　
RC 350/188/... 160 M+L 11-15 42x110 PTFS350 350 300 250 260 41 236 231 188 26 6 18 M16 18
RC 350/204/... 180 M+L 18.5-22 48x110 　 　 　 　 　 53 234 　 204 　 　 　 　 　
RC 350/228/… 　 　 　 　 　 　 　 　 70 232 228 228 　 　 　 　 　
RC 350/256/... 　 　 　 　 　 　 　 　 90 230 226 256 　 　 　 　 　
RC 400/204/... 200 L 30 55x110 PTFS400 400 350 300 300 50 265 260 204 26 6 18 M16 22
RC 400/228/... 　 　 　 　 　 　 　 　 　 262 (DF350) 228 　 　 　 　 　
RC 400/256/... 　 　 　 　 　 　 　 　 　 259 283 256 　 　 　 　 　
RC 450/234/... 225 S 37 60x140 PTFS450 450 400 350 350 80 301 (DV400) 234 26 6 18 M16 20
RC 450/262/... 225 M 45 　 　 　 　 　 　 　 297 362 262 　 　 　 　 　
RC 450/285/... 　 　 　 　 　 　 　 　 　 276 (DF4O1) 285 　 　 　 　 　
RC 450/315/... 　 　 　 　 　 　 　 　 　 　 　 315 　 　 　 　 　
RC 550/248/... 250 M 55 65x140 PTS5500 550 500 450 450 80 362 　 248 26 6 18 M16 20
RC 550/265/... 280 S+M 75-90 75x140 　 　 　 　 　 　 359 　 265 　 　 　 　 　
RC 550/275/... 　 　 　 　 　 　 　 　 　 276 　 275 　 　 　 　 　
RC 550/295/... 　 　 　 　 　 　 　 　 　 　 　 295 　 　 　 　 　
RC 550/315/... 　 　 　 　 　 　 　 　 　 　 　 315 　 　 　 　 　
RC 660/310/... 315 S+M+L 110-132 80x170 PTS660 660 600 550 550 80 414 　 310 32 6 23 M20 20
RC 660/330/... 　 160-200 　 　 　 　 　 　 　 276 　 330 　 　 　 　 　
RC 660/345/... 　 　 　 　 　 　 　 　 　 　 　 345 　 　 　 　 　
RC 800/315/..** 355 L 250-315 95x170 　 800 740 680 680 125 468 　 315 60 10 23 M20 35
RC 800/335/..** 400 L 355-400 100x210 　 　 　 　 　 　 474 　 335 　 　 　 　 　
RC 800/350/..** 　 　 　 　 　 　 　 　 　 435 　 350 　 　 　 　 　
RC 800/443/..** 　 　 　 　 　 　 　 　 　 490 　 443 　 　 　 　 　
